| Type | Vrrm(KV) | Io(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm(uA) | ||
|---|---|---|---|---|---|---|---|---|
| NV2F20 | 2 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV3F20 | 3 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV4F20 | 4 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV5F20 | 5 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV2F50 | 2 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV3F50 | 3 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV4F50 | 4 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV5F50 | 5 | 50 | 80 | 5 | 7 | 0.02 | ||
| The type is not fully displayed,contact us for other requirements please. | ||||||||

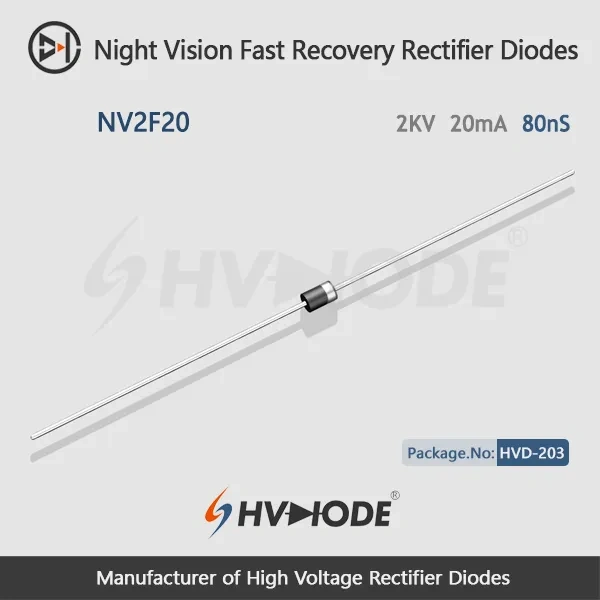

Products Main features：
1、Axial leaded connection;
2、High thermal conductivity epoxy hot injection molding;
3、Excellent discharge characteristics;
4、Fast reverse recovery time for high efficiency;
5、Reverse leakage current is in the nanoampere range;

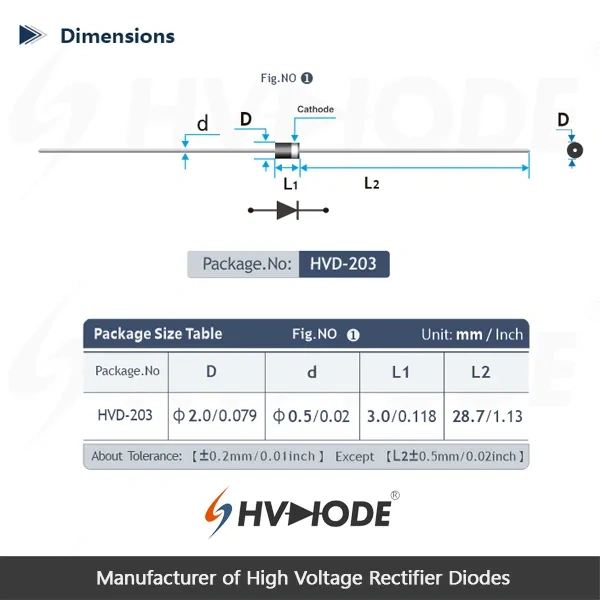

6、Ultra small size packaging.
（2~5KV; 20~50mA; 80nS）
| Type | Vrrm(KV) | Io(mA) | Trr(nS) | Ifsm(A) | Vfm(V) | Irrm(uA) | ||
|---|---|---|---|---|---|---|---|---|
| NV2F20 | 2 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV3F20 | 3 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV4F20 | 4 | 20 | 80 | 3 | 8 | 0.02 | ||
| NV5F20 | 5 | 20 | 80 | 3 | 8 | 0.02 | ||
| The type is not fully displayed,contact us for other requirements please. | ||||||||
| NV2F50 | 2 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV3F50 | 3 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV4F50 | 4 | 50 | 80 | 5 | 7 | 0.02 | ||
| NV5F50 | 5 | 50 | 80 | 5 | 7 | 0.02 | ||
| The type is not fully displayed,contact us for other requirements please. | ||||||||
FAQ
Is the NVF series suitable for fast switching rectification?
Yes, its 80ns recovery time supports fast-response DC rectification under repetitive switching conditions.
Can multiple NVF diodes be cascaded for higher voltage output?
Yes, they are commonly used in cascaded strings to achieve higher overall DC voltage.
Is it compatible with high voltage zener diode stabilization circuits?
Yes, it works reliably with high voltage zener diodes used for voltage regulation and transient suppression.
Can NVF diodes be used inside bridge rectifier configurations?
Yes, they can be integrated into segmented high voltage bridge rectifier structures for fast DC formation.
What is the standard production lead time?
Standard specifications follow regular production schedules, while bulk and customized orders are evaluated based on technical requirements.
